Brand Name : DINSEN
Model Number : DSJA380
Certification : CE,ASME PASE-2014,RoHS,AS/NSZS2693
Place of Origin : China
MOQ : 100 pieces
Price : USD48-50/pcs
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 20000pcs per month
Delivery Time : 15-30 days
Packaging Details : Standard in color box with foam packing; 4 pcs as a piece of packaging;1 20FT container can load 2108pcs.
Product Name : Hot sale China professional electric inflatable car hydraulic jack with CE RoHS
Rated Power : 150W
Operating Voltage : DC12V
Max. Loading Car Weight : 3T/5T
Max. Current : 13A
Fuse : 15A
Lift Range : 135-360/155-450mm
Max. Pressure : 150PSI
Air Flow : 35L/min
Air hose length : 0.65m
Power Cable : 3.5m

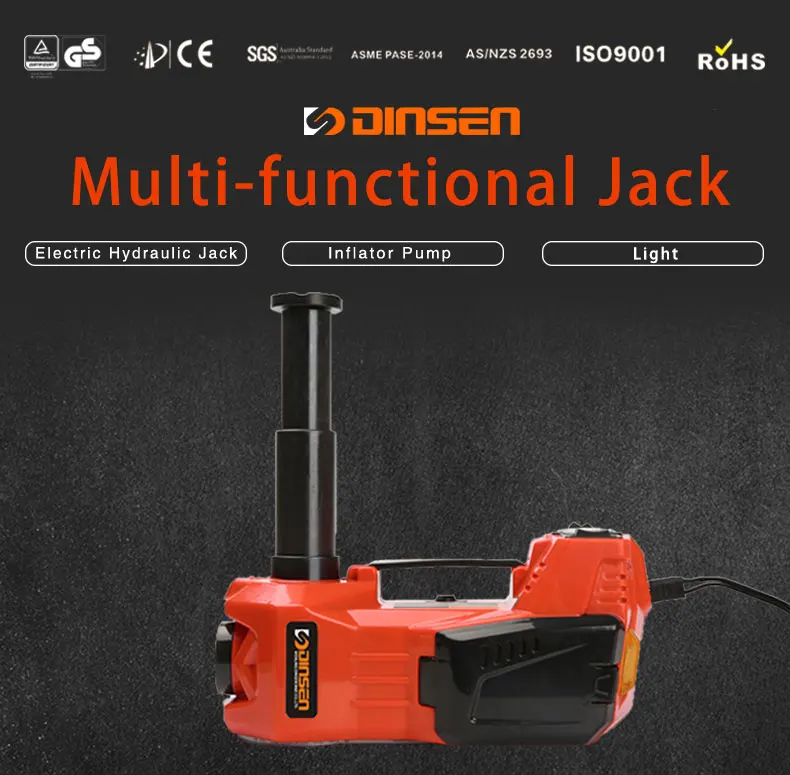

Multi-functional jack (3 in 1: Lifting+Inflating+Light) |
Model No. | DSJA380 |
Description | Electric Hydraulic Jack+Inflator Pump+Light (3 in 1) |
Port | Ningbo or Shanghai |
Payment terms | 1)30% T/T in advance,the balance paid against copy of B/L 2)L/C at sight |
Warranty | One Year |
Color | Available to be customized (With MOQ request) |
Certification | ISO9001,ASME PASE-2014,AS/NZS 2693,CE,RoHS,Patent |
Package | Color box with foam or plastic tool box |
N.W./G.W. | 4.4/4.9kgs or (4.4/6.2kgs) |
Set/ctn | 4pcs or 3pcs |
Dimensions | 380*345*405mm or (565*395*305mm) |
20FT | 2108pcs or 1233pcs |

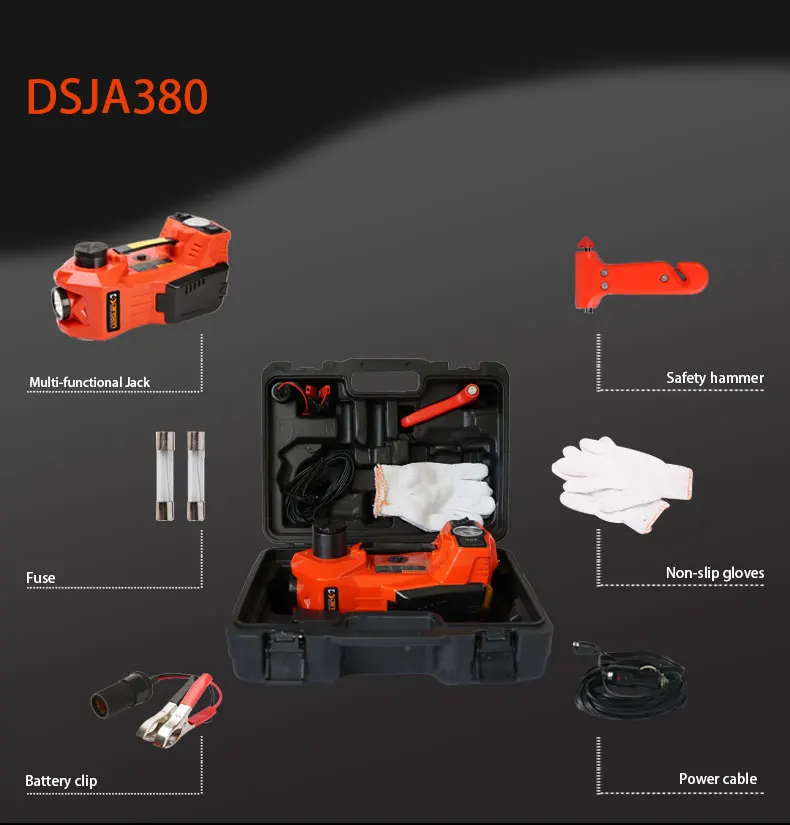

Multi-functional jack (3 in 1: Lifting+Inflating+Light) |
1. Lifting Function Parameter |
Rated Power | 150W |
Operating Voltage | DC 12V |
Max.Current | 13A |
Fuse | 15A |
Min.Height | 115mm/135mm/155mm |
Max.Height | 310mm/360mm/450mm |
Max.Loading Car Weight | 3.0T/5.0T |
2. Inflating Function Parametermeter |
Current | 10A |
Air hose length | 0.65m |
Air Flow | 35L/min |
Max.Pressure | 150PSI |
Power Cable | 3.5m |

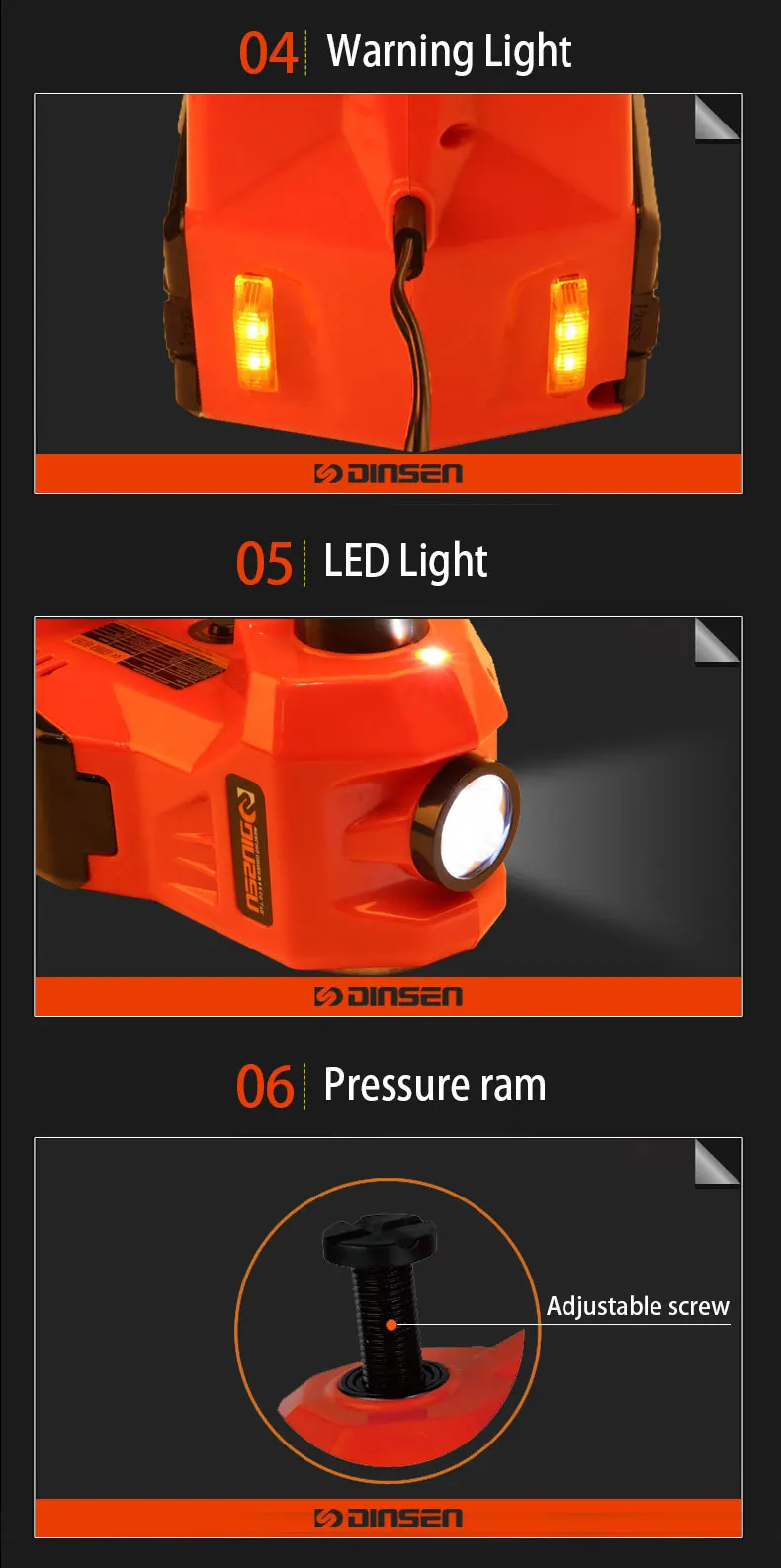

3. Light |
Front | LED light |
Behind | Warning Light |
Top | LED Light |
FEATURES:
♦ 1. Combine two functions of Car jack and Tyre Inflator Pump in one machine.
♦ 2. Current overload protection design.
♦ 3. Self-locking power structure and safety unloading knob design, in case of the power was disconnected, the lifted jack cannot fall, when re-connecting the power, the jack will keep working in accordance with the instruction, or using the safety unloading knob to fall, which can protect the user's personal safety effectively.
♦ 4. Adopt self-developed small flow and large efficiency gear pump, reduce electrical power and reduce the work of car batteries and circuits, to ensure the the car circuits not affected.
♦ 5. Fully enclosed design of the hydraulic tank, the machine will not leak oil at any angels.
♦ 6. Just connecting the vehicle cigar lighter, then the vehicle will be risen and fallen.
♦ 7. Portable, compact and easy to operate.

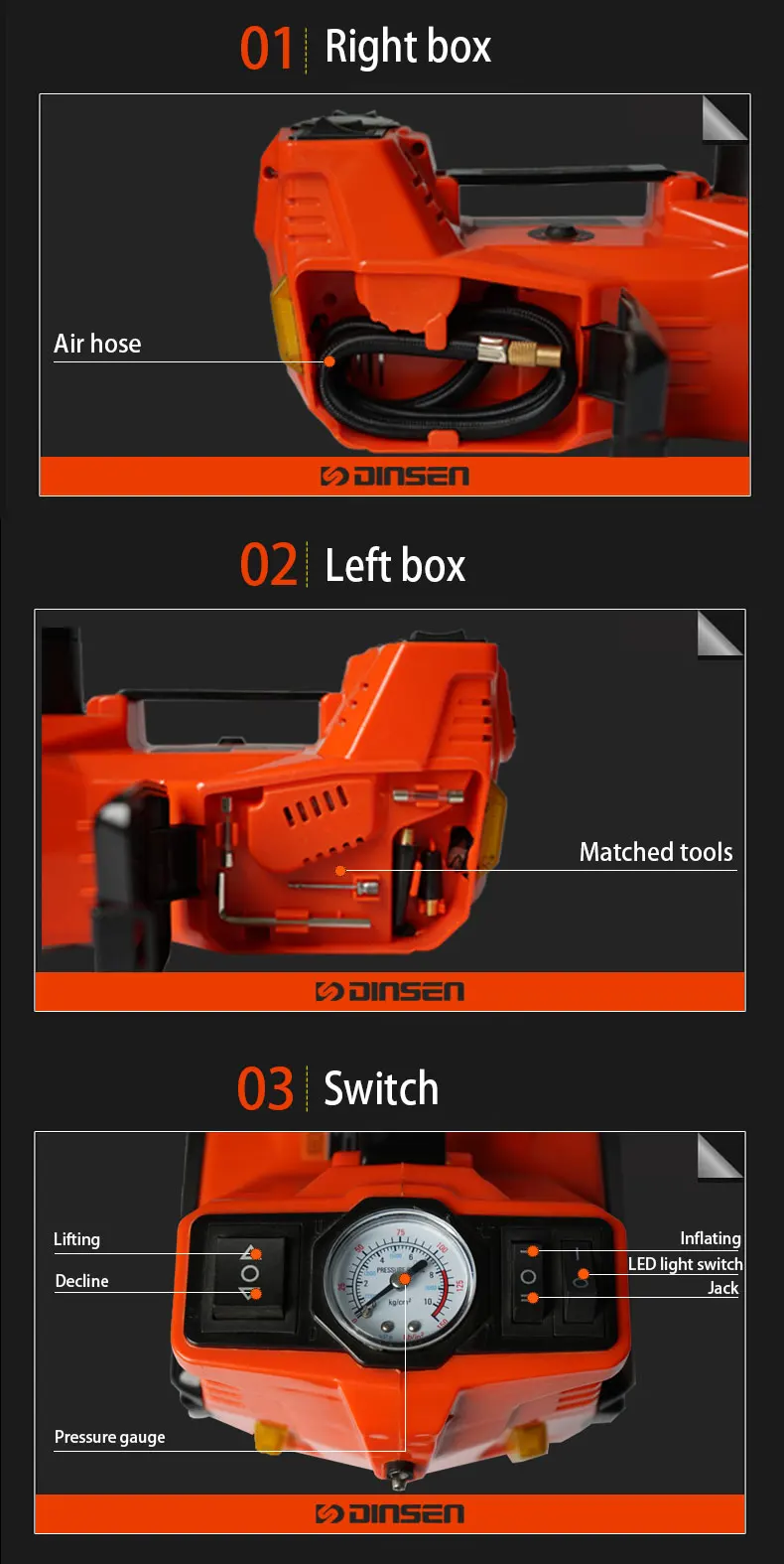

♦ 8. Air hose, power cable and tools can be collected neatly in the tool box.
DINSEN is the specilist manufacturer of the electric hydraulic jack, electric impact wrench and auto inflator pump, not trading company.
DINSEN can offer you the best price and after sale service.
1.The MOQ request?
DINSEN brand: no MOQ request.
OEM brand: MOQ request accordingly.
2.About the sample?
The sample cost and freight fee has to be charged accordingly.
3.About payment terms?
1) 100% T/T for sample orders.
2) 30% T/T in advance, balance before delivery or against copy of B/L.
3) L/C at sight.
4.How long does it take to receive my order?
About 25 working days after we confirmed payment and 10 working days for sample order.
5.What basic information should I provide when inquiry?
1) Quantity.
2) Ma. lifting weight.
3) Min. lifting height.
4) Max. bearing capacity
5) Other request (such as logo printing, custom packaging and ect.) if you have.
6.About warranty time?
DINSEN provide one year warranty time
7.About price
The exact prices shall be quoted accordingly based on different details and your requirements, OEM is also available.
Sincerely looking forward to cooperating with customers from all over the world!
![]() |
